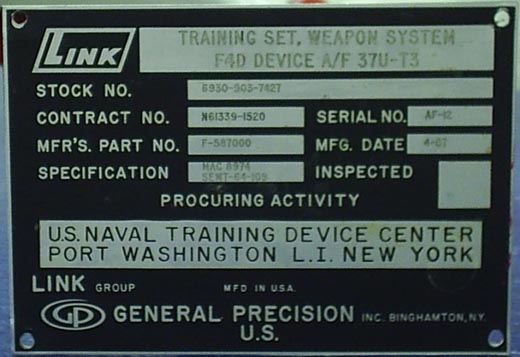

The F-4D A/F 37U-T3 Weapons System Training Set PN F-587000 S/N AF-12 formerly used by the U.S. Air Force and Air National Guard will be making appearances at a few air shows this summer.
The simulator began its service to our country in 1967 at Hill AFB in Utah , training crews for duty in Vietnam . Then, from 1979-91, the simulator served the 184th Kansas Air National at McConnell AFB in Wichita , Kansas . In 2000 Cannaby purchased the stripped-out simulator carcass from the Kansas Aviation Museum as a rescue project. It took Cannaby and his company, Nu-Tek Aircraft Instruments, Inc., three years to replace the simulator's missing equipment - from light lenses, control panels, and stick grips to ejections seats.


F-4 Phantom II Simulator
  F-4 Phantom II Simulator
Purchase condition: The F-4 Phantom Simulator without the skin

F-4 Phantom Simulator with skin and newly aquired ejection seats

F-4 Phantom II Simulator   F-4 Phantom II Simulator
F-4 Phantom Simulator on a new trailer and a new paint job
F-4 Phantom Simulator at a show with working visuals and three internal video cameras on the pilots

F-4 Phantom II Simulator Head Pilot's Visuals   F-4 Phantom II Simulator Co-Pilot's Visuals
Installation of visuals for the Pilot and Co-Pilot

F-4 Phantom II Simulator Control Center   F-4 Phantom II Simulator Control Center
Control Center in front of the simulator on the trailer

F-4 Phantom II Simulator Pilot's Visuals   F-4 Phantom II Simulator Co-Pilot's Visuals

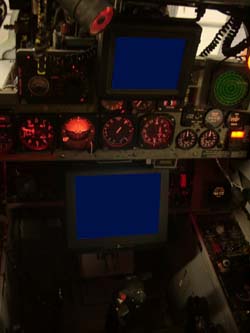

New 10" monitors for front and rear cockpit and 5" pilot to pilot visual


The F-4 Phantom II Simulator   The F-4 Phantom II Simulator
The F-4 Phantom II Simulator after the cammo paint was sanded off

The F-4 Phantom II Simulator after the Thunderbird white was painted on

The F-4 Phantom II Simulator
The F-4 Phantom II Simulator ready for the Red and Blue to be added

The New F-4 Phantom II Thunderbird Simulator completely finished


Goals
The ultimate goal is to make the F-4D Phantom Simulator a fully interactive aviation simulator. The F-4D Phantom Simulator is in a continual refinement process. After each event, in which it has made an appearance, upgrades are made to further it's restoration. All of the proceeds go directly to the restoration of the simulator
